• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1964/1965

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 116340

• • alternative name: Imperial Kuba

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PFL200 PC92 PCL85 PCF802 PL500 PY88 DY86 PCL86 AW59-91 or WX59-105 ECC85 ECH81 EAF801 ECC83 EM84 ELL80

• Number of Transistors
• 12

• Semiconductors
• AF109 AF106 AF102 AF139 AF139 OC304 AC127 AF115 AF127 AF121 AF121 AA111 BY242 OA150 RL43g V40C1 AF137 AA113 AA113 B250C75

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

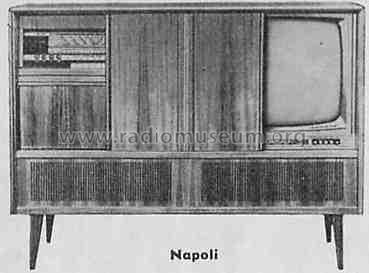

• Model: Fernseh-Stereo-Konzerttruhe Napoli 65 Ch= 664 & 1723 - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1270 x 920 x 410 mm / 50 x 36.2 x 16.1 inch

• Notes

• Fernseh-Chassis = Imperial 1723;
  Rundfunk-Chassis = Imperial 664-Stereo; FM-Stereo-Decoder nachrüstbar
  Stereo-Plattenwechsler verschiedener Fabrikate.

  In den Grosshandelskatalogen VDRG und RFP 1964/65 nur mit Kuba Napoli bezeichnet.

• Price in first year of sale
• 2,208.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Mentioned in
• Handbuch Rundfunk Fernsehen Phono (RFP) 1964/65, S.73

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
