• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24501

• • alternative name: Imperial Kuba

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EAA91 EM84 ECC83 ECL86 ECL86

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 235; 250 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

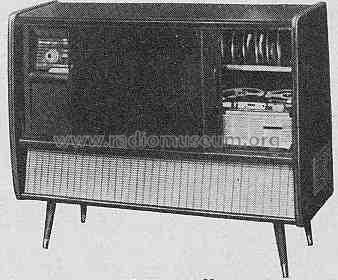

• Model: Serenade 63 Ch= 612a [poliert] - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1130 x 880 x 430 mm / 44.5 x 34.6 x 16.9 inch

• Notes
• Rundfunk-Chassis = 612a-Stereo. Abschraubbare Füße.

• Price in first year of sale
• 898.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 2, Ernst Erb
