Stereoanlage 864
Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Country
- Germany
- Manufacturer / Brand
- Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15644
-
- alternative name: Imperial Kuba

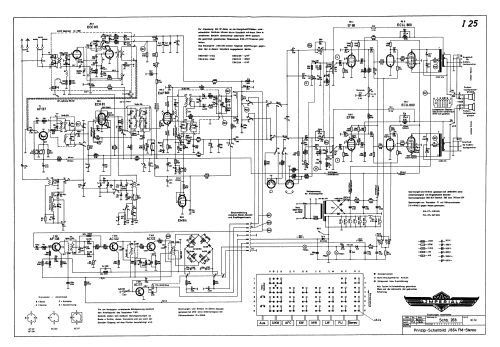

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereoanlage 864 - Kuba Kuba-Imperial, G.
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Die Kuba Stereoanlage 864 besteht aus:
- Steuergerät Imperial Vollstereo-Großsuper 864
- Kuba Plattenwechsler
- 2 Lautsprecherboxen
- Price in first year of sale
- 490.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Taxliste Franzis Verlag (14. Ausgabe, 1966)
- Literature/Schematics (1)
- Funkschau (1966 Heft14, S.461)
