• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27019

• • alternative name: Imperial Kuba

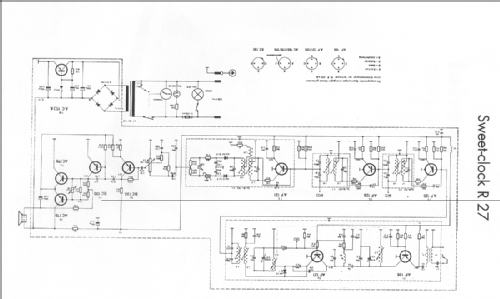

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF121 AF126 AF126 AF121 BC130 BC130 AC178 AC179 AC153 AA112 AA112 AA113

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Sweet-Clock R27 - Kuba Kuba-Imperial, G.

• Shape

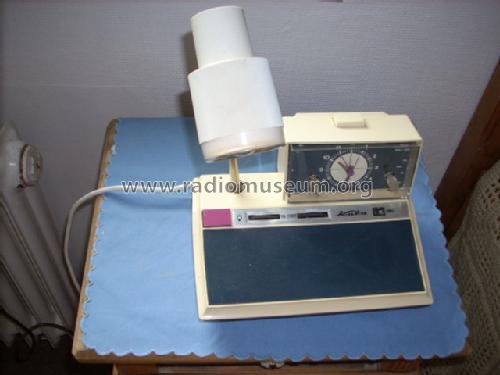

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 235 x 260 x 190 mm / 9.3 x 10.2 x 7.5 inch

• Notes
• Baugleich mit Imperial Sweet Clock.
  Das Kuba-Datenblatt zum Modell nennt 10 Kreise.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 179.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.
