• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20191

• • alternative name: Imperial Kuba

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

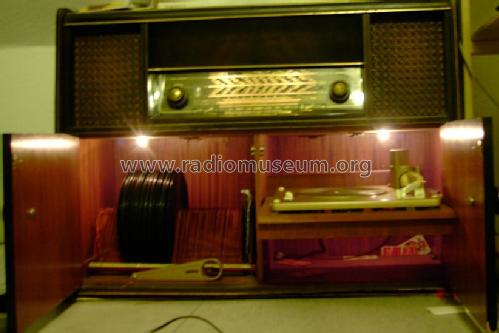

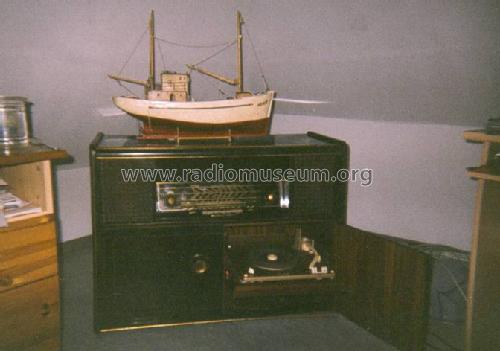

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tarantella 56 Ch= Concertino 6 - Kuba Kuba-Imperial, G.

• Shape

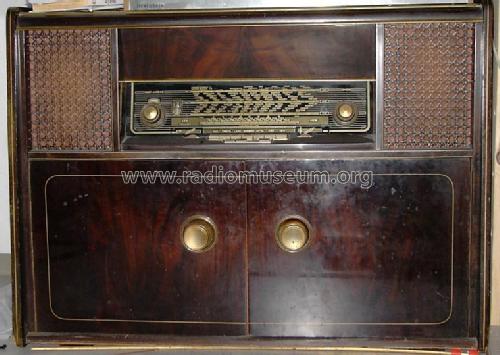

• Console with Push Buttons.

• Dimensions (WHD)
• 910 x 880 x 420 mm / 35.8 x 34.6 x 16.5 inch

• Notes
• Rundfunk-Chassis = Telefunken Concertino 6;
  Phono-Chassis = Philips AG1003.
  Herr Schmitz hat mit Aufkleber Concertino 57. Im Kat #443 kommt aber Concertino 6 auch bei Telefunken vor (also wohl kein Druckfehler bei Kuba).

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 795.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
