Venetia Transistor 64

• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15641

• • alternative name: Imperial Kuba

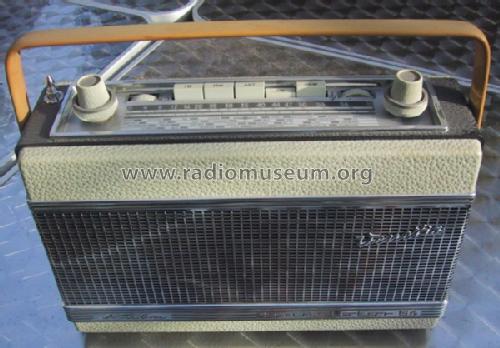

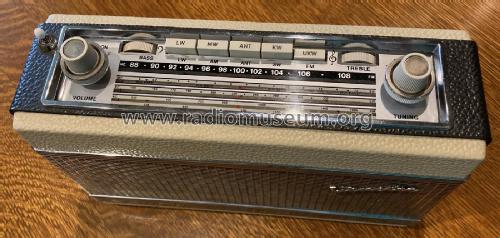

• Picture

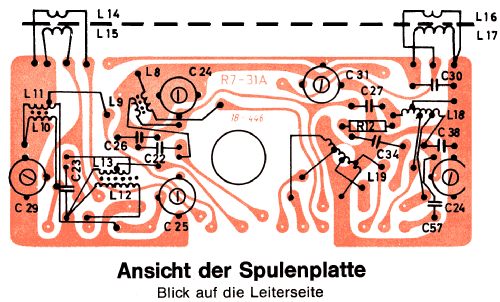

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF121 AF125 AF126 AF126 AF126 AC151 AC151 AC153 AC153 OC303

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Venetia Transistor 64 - Kuba Kuba-Imperial, G.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 190 x 95 mm / 11.4 x 7.5 x 3.7 inch

• Notes
• Der Venetia transistor 64 von Kuba ist technisch gleich dem Imperial Capri transistor 64 - auch ein Auto-Reisesuper. Der "Transistor 64" ohne Namenszusatz hat ebenfalls das gleiche Chassis, doch führt er keine Kurzwellen.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 348.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb
