Nagra T-Audio (TC) Speed Variator analog

Kudelski SA; Cheseaux-sur-Lausanne

Data

Forum

Pictures

Collections

Country
Switzerland

Manufacturer / Brand
Kudelski SA; Cheseaux-sur-Lausanne

Year
1981

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
255990

- Brand: Nagra

Schematics

Nagra T-Audio ; Kudelski SA; (ID = 3094392) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094393) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094394) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094395) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094396) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094427) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094575) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094576) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094040) R-Player — Kudelski SA; Nagra T-Audio (3)

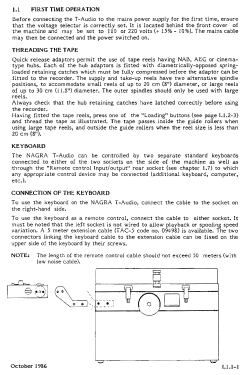

Nagra T-Audio ; Kudelski SA; (ID = 3094187) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094188) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094189) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094212) R-Player — Kudelski SA; Nagra T-Audio (3)

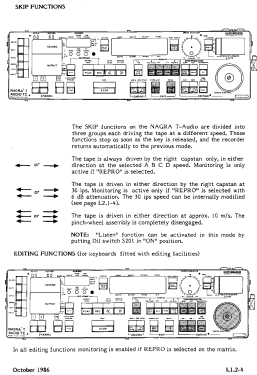

Nagra T-Audio ; Kudelski SA; (ID = 3094213) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094214) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 3094215) R-Player — Kudelski SA; Nagra T-Audio (3)

Nagra T-Audio ; Kudelski SA; (ID = 1716367) R-Player — Kudelski SA; Nagra T-Audio (1)

Nagra T-Audio ; Kudelski SA; (ID = 2922455) R-Player — Kudelski SA; Nagra T-Audio (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder; Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC) / 110-240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Nagra T-Audio [Speed Variator analog] - Kudelski SA; Cheseaux-sur-

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
420 x 250 x 350 mm / 16.5 x 9.8 x 13.8 inch

Notes
Uses 1/4" magnetic tape.
Mono or two channels stereo,
Time code availability.
Modular construction.
Analog Speed Variator for Playback Speed %,
Analog Trim Control / Servo Control

Built-in options
Monitoring speakers and phones
Connectors for high speed copy
Connector for 2nd keyboard
Servo system
Record PCB with antidistorsion, Record PCB w/o antidistorsion
Simultaneous playback
Pilot playback and synchronisation
Neopilot playback head
Synchronizer
Serial communication interface
High stability time base

Connections at back:
REMOTE CONTROL INPUT/OUTPUT
AUDIO MONITORING OUTPUT
CUSTOMIZING SELECTORS
BALANCED LINE INPUT CHANNEL 1 (left)
BALANCED LINE INPUT CHANNEL 2 (riht)
BALANCED LINE OUTPUT CHANNEL 1 (left)
BALANCED LINE OUTPUT CHANNEL 2 (right)
HIGH SPEED COPY (30 ips.) INPUT Sensitivity 775 mV for 0 dB
HIGH SPEED COPY (30 ips.) OUTPUT Level 775 mV for 0 dB

Author
Model page created by Moisés Piedade. See "Data change" for further contributors.
