Gitarrenverstärker 403

• Country
• Germany

• Manufacturer / Brand
• KWS-Electronic GmbH, Tattenhausen

• Year
• 1963–1965

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 80011

• Picture

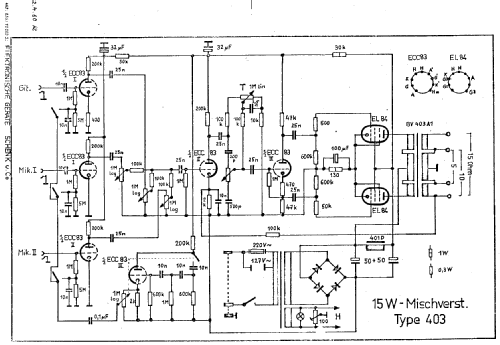

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC83 ECC83 ECC83 EL84 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Gitarrenverstärker 403 - KWS-Electronic GmbH,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 105 x 150 mm / 9.8 x 4.1 x 5.9 inch

• Notes
• Gitarrenverstärker. KWS = Firma? Weiß jemand näheres?

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 369.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Franz Gysi. See "Data change" for further contributors.
