• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1968 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 116257

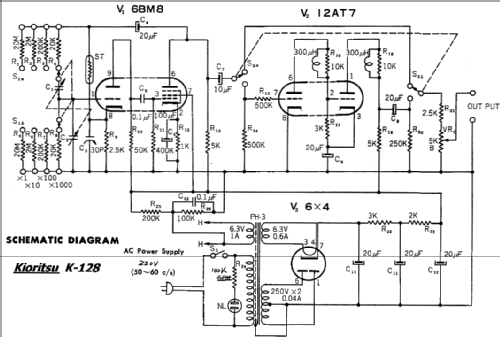

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6BM8 12AT7 6X4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Audio Generator K-128 - Kyoritsu Electrical Instrument

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 266 x 177 x 136 mm / 10.5 x 7 x 5.4 inch

• Notes
• Generador de audio, onda senoidal y cuadrada. / Audio generator, sinus and square wave form.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Data from my own collection

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
