• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1988 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347641

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Loop/PSC Tester 4116 - Kyoritsu Electrical Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Kyoritsu, Digital Loop/PSC Tester 4116 (KMP 4116)

  Mains powered, from the circuit under test

• Literature/Schematics (1)

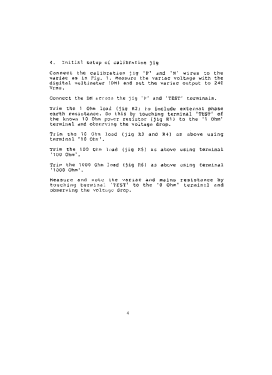

• Calibration: page 5 missing

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
