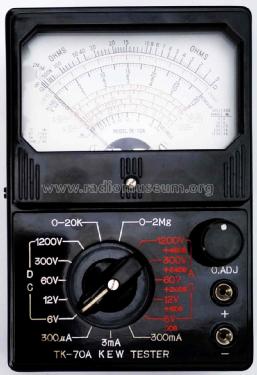

KEW Tester TK-70A
Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo
- Country
- Japan
- Manufacturer / Brand
- Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 331748
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / AA: 2 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: KEW Tester TK-70A - Kyoritsu Electrical Instrument
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 89 x 43 x 132 mm / 3.5 x 1.7 x 5.2 inch
- Notes
-
Multimeter, sensitivity 2.5 kΩ/V AC & DC
AC&DC: 6 V-12 V-60 V-300 V-1200 V
DC: 300 μA-3 mA-300 mA
Resistance: 20 kΩ, 2 MΩBakelite case, back cover steel sheet black curling wax
- Net weight (2.2 lb = 1 kg)
- 0.380 kg / 0 lb 13.4 oz (0.837 lb)
- Author
- Model page created by Marc Gianella. See "Data change" for further contributors.
