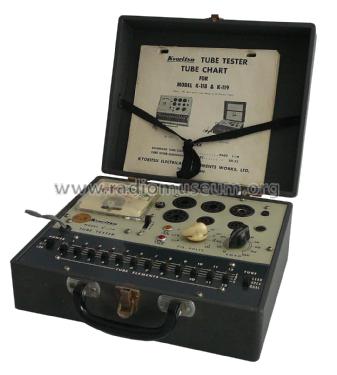

Tube Tester K-119

• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 94140

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material

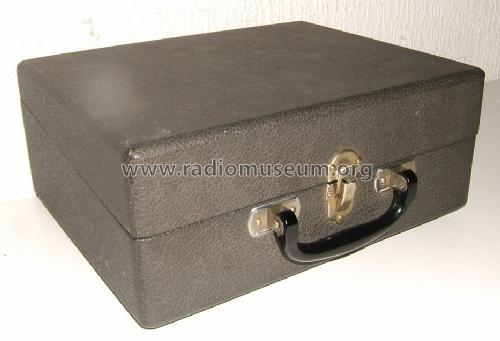

• Wooden case

• from Radiomuseum.org
• Model: Tube Tester K-119 - Kyoritsu Electrical Instrument

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 265 x 115 x 215 mm / 10.4 x 4.5 x 8.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
