Electronic Fault Tracer
Labgear Ltd.; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Labgear Ltd.; Cambridge
- Year
- 1945 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 334937
- Number of Tubes
- 3
- Valves / Tubes
- 6C5 6G6 5Z4 Neon_Indicator
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220; 230; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material

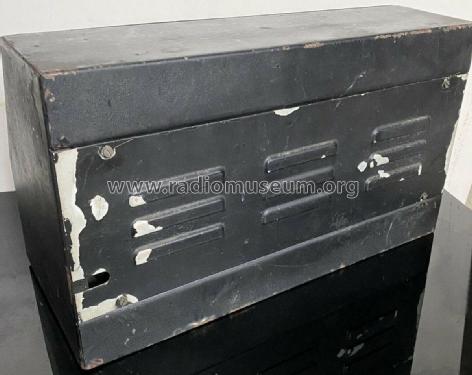

- Metal case
- from Radiomuseum.org
- Model: Electronic Fault Tracer - Labgear Ltd.; Cambridge
- Shape
- Tablemodel, slant panel.
- Notes
-
The Electronic Fault Tracer has an AF oscillator, an HF oscillator (5 ranges), a bridge circuit with output for headphone detector and a neon capacitor leakage detector. There is also a signal tracer output which by clever switching utilises the two oscillator valves as an amplifier.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
