• Country
• Spain

• Manufacturer / Brand
• LME Laboratorio de Metrologia Electrónica; Barcelona

• Year
• 1971

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 169951

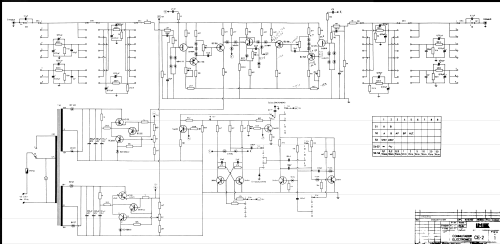

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• 2N3819 2N744 BC158 BC205 BSW142 MC140 MC150 TAA320 1N914 BAX13 BY127

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Conmutador Electrónico CE-2 - LME Laboratorio de Metrologia

• Notes
• Transistores listados uno por modelo
  . Each transistor type listed once.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
