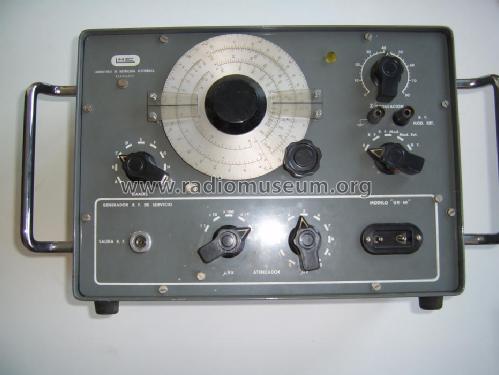

Generador RF GR-60

• Country
• Spain

• Manufacturer / Brand
• LME Laboratorio de Metrologia Electrónica; Barcelona

• Year
• 1958

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 169953

• Picture

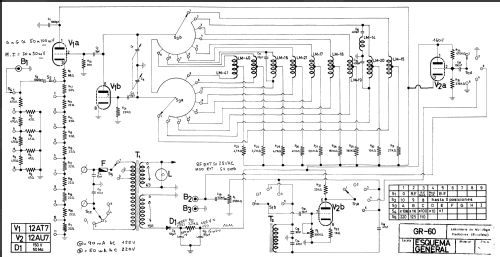

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC81 or 12AT7 ECC82 or 12AU7

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Generador RF GR-60 - LME Laboratorio de Metrologia

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 310 x 210 x 150 mm / 12.2 x 8.3 x 5.9 inch

• Notes

• Laboratorio de Metrología Electrónica (LME), GR-60

  Bandas:

  • A.- 0,15 a 0,5 MHz.
  • B.-   0,4 a 0,5 MHz.
  • C.-   0,5 a 1,6 MHz.
  • D.-   1,5 a 4,5 MHz.
  • E.-      4 a  13 MHz.
  • F.-     10 a  30 MHz.
  • G.-    20 a  50 MHz.
  • H.-    35 a 150 MHz.
  • I .-    70 a 250 MHz.

  Precio: 3.980 pesetas. (Tarifa oficial de precios LME junio 1959)

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• Tarifa oficial de precios LME junio 1959

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
