Generador TV y FM GT-250
LME Laboratorio de Metrologia Electrónica; Barcelona
- Country
- Spain
- Manufacturer / Brand
- LME Laboratorio de Metrologia Electrónica; Barcelona
- Year
- 1958 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 171015

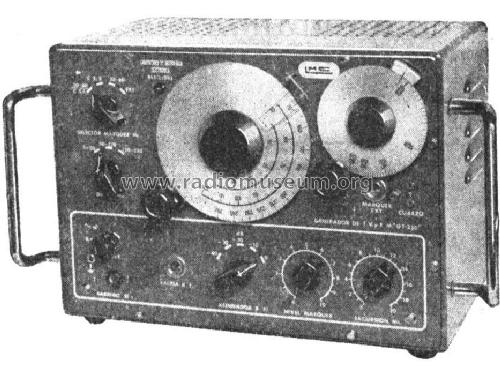

foto de origen desconocido
Sacada del manual

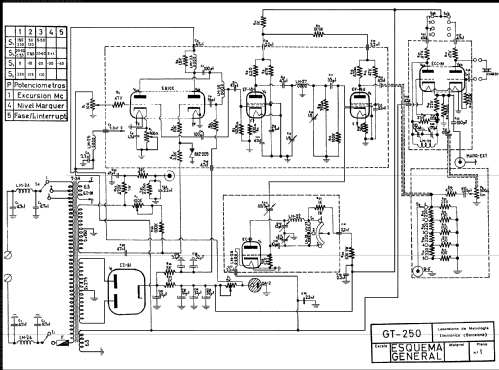

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ EF184 (1960)]
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generador TV y FM GT-250 - LME Laboratorio de Metrologia
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 310 x 210 x 180 mm / 12.2 x 8.3 x 7.1 inch
- Notes
-
Laboratorio de Metrología Electrónica (LME), GT-250
Generador de RF para TV y FM.
- Salida: 5 a 230 MHz en 5 gamas. Z= 75 Ω.
- Marquer: de 20 a 60 MHZ y cuarzo de 5,5 MHz
- Vobulador: desplazamiento 0-20 Mhz en todas las gamas.
Precio: 12.370 pesetas. (Tarifa oficial de precios LME junio 1959)
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Mentioned in
- Tarifa oficial de precios LME junio 1959
- Literature/Schematics (1)
- -- Original-techn. papers. (Catálogo LME 1963)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
