Moduloscope MO-111/70
LME Laboratorio de Metrologia Electrónica; Barcelona
- Country
- Spain
- Manufacturer / Brand
- LME Laboratorio de Metrologia Electrónica; Barcelona
- Year
- 1958
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 115877
From Todocolección Auction.

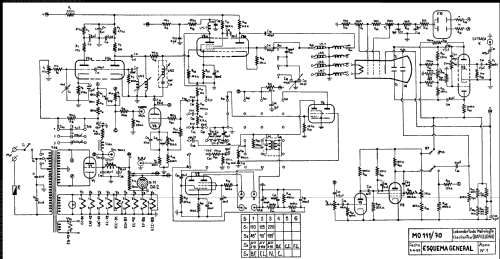

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125: 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Moduloscope MO-111/70 - LME Laboratorio de Metrologia
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 220 x 200 mm / 16.9 x 8.7 x 7.9 inch
- Notes
-
Laboratorio de Metrología Electrónica (LME), MF-111
Generador de RF modulado en frecuencia (Moduloscopio). (Generador MF-111 con TRC como indicador)
Precio: 10.720 pesetas. (Tarifa oficial de precios LME junio 1959)
Precio catálogo 1967: 12.790 Pts (ESP).
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Mentioned in
- -- Original prospect or advert ("Electrónica" nº49, December 1958)
- Literature/Schematics (1)
- -- Original-techn. papers. (Tarifa oficial de precios LME junio 1959)
- Literature/Schematics (2)
- Catálogo LME 1963
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
