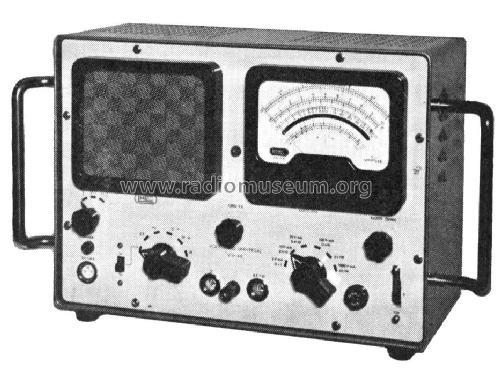

Voltímetro Electrónico VU-46
LME Laboratorio de Metrologia Electrónica; Barcelona
- Country
- Spain
- Manufacturer / Brand
- LME Laboratorio de Metrologia Electrónica; Barcelona
- Year
- 1965
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 172515
Catálogo LME
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 1
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Voltímetro Electrónico VU-46 - LME Laboratorio de Metrologia
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 125 x 225 x 310 mm / 4.9 x 8.9 x 12.2 inch
- Notes
- Analizador dinámico.
Impedancia de entrada: 11 Mohm.
Signal tracer.
Z input: 11 Mohm.
Precio catálogo 1967: 11.920 Pts (ESP)
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
