• Country
• Italy

• Manufacturer / Brand
• LAEL, Laboratori Costruzione Strumeni Elettronico; Milano

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 167046

• Number of Tubes
• 2

• Valves / Tubes
• EAA91 ECC81

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

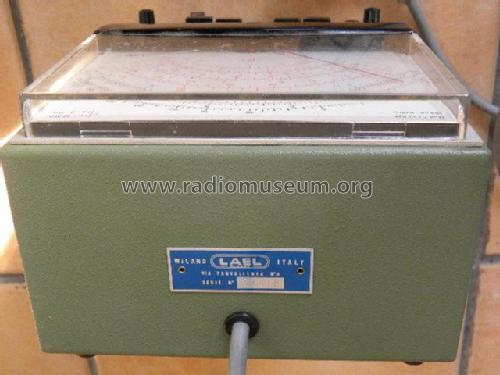

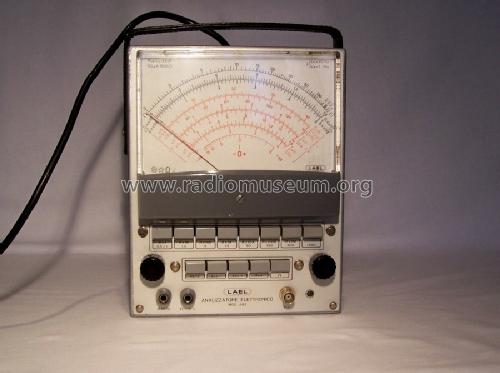

• Model: Analizzatore Elettronico 682 - LAEL, Laboratori Costruzione

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 170 x 215 x 95 mm / 6.7 x 8.5 x 3.7 inch

• Notes
• Impedenza d'ingresso: Vcc: 20 MOhm; Vca: 2 MOhm.
  Campo di misura: Vcc da 50 mV a 1500 V in 8 portate; Vca da 0,1 a 4000 V in 8 portate.
  Misure di resistenza: da 0,2 Ohm a 1000 MOHm in 7 portate.
  Campo di frequenza Vca: da 20 Hz a 100 kHz entro ± 3 dB.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
