Generatore di Monoscopio 656
LAEL, Laboratori Costruzione Strumeni Elettronico; Milano
- Country
- Italy
- Manufacturer / Brand
- LAEL, Laboratori Costruzione Strumeni Elettronico; Milano
- Year
- 1956 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 360900
- Number of Tubes
- 106
- Valves / Tubes
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generatore di Monoscopio 656 - LAEL, Laboratori Costruzione
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 600 x 2000 x 500 mm / 23.6 x 78.7 x 19.7 inch
- Notes
-
Segnali erogati:
- Informazione video completa di segnali di spegnimento della traccia e segnali di sincronismo CCIR 625 righe.
- Figura "Testa di Indiano" RCA.
- Barre verticali.
- Barre orizzontali.
- Reticolo inseribile a volontà.
Tensione di uscita: 2 Vpp su 75 Ω.
- Mentioned in

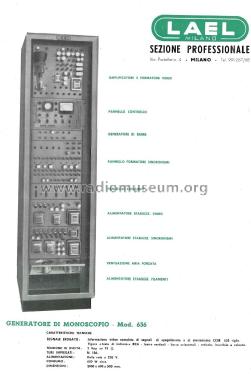

- -- Original prospect or advert (“L’Antenna” editore Il Rostro, numero 9, settembre 1956.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
