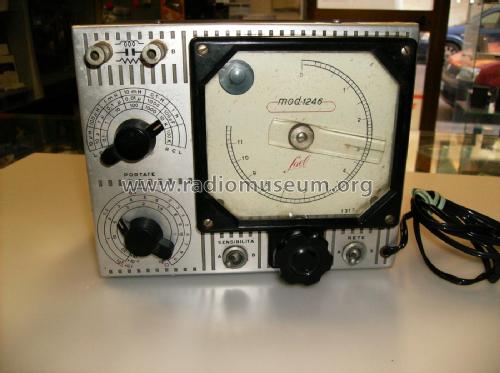

Ponte RCL 1246

LAEL, Laboratori Costruzione Strumeni Elettronico; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1949/1950
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 206093

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Ponte RCL 1246 - LAEL, Laboratori Costruzione
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 195 x 155 x 144 mm / 7.7 x 6.1 x 5.7 inch
  • Notes
    • Misure di resistenza da 0,5 ohm a 1,1 Mohm;
    • Misure di capacità da 10 pF a 110 uF;
    • Misura di induttanze da 50 uH a 11 H;
    • Misure di tgDelta da 5*10-3 a 1;
    • Misure di Q da 0,2 a 500;
    • Oscillatore interno a R.C. da 1kHz;
    • Rivelatore interno a 4 sensibilità;
    • Precisione di taratura 2 %;
  • Net weight (2.2 lb = 1 kg)
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Mentioned in
  • Catalogo GBC 1958
  • Literature/Schematics (1)
  • -- Original prospect or advert (L'Antenna, n.6, giugno 1950)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
