• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1935/1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246885

• • alternative name: Wholesale Radio

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6C6 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

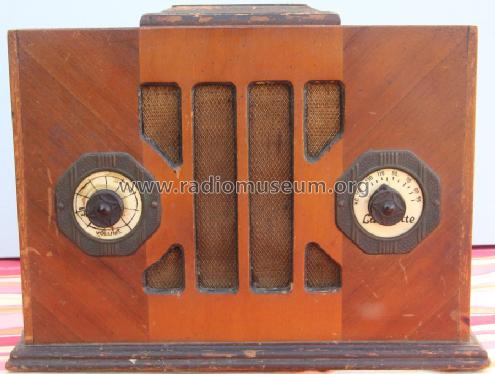

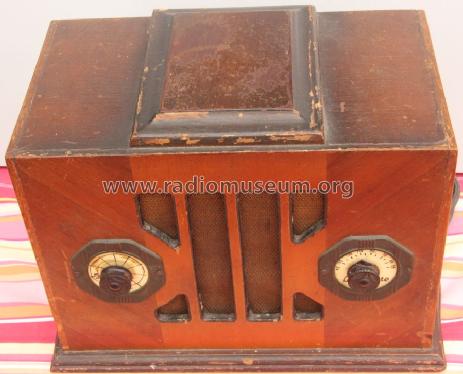

• Model: 501 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 265 x 155 x 210 mm / 10.4 x 6.1 x 8.3 inch

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
