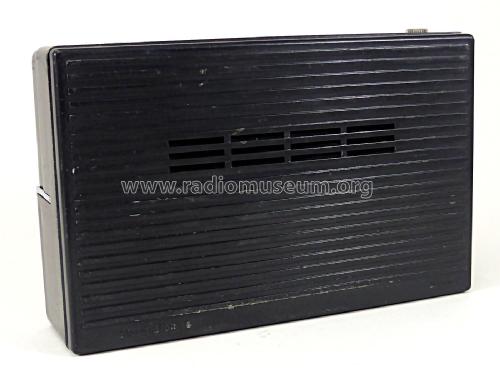

8 Transistor Deluxe FS-253
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329367
-
- alternative name: Wholesale Radio
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor Deluxe FS-253 - Lafayette Radio & TV Corp; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 148 x 94 x 42 mm / 5.8 x 3.7 x 1.7 inch
- Notes
-
Top mount for external antenna. Reverse painting. US civil defense marks on station dial.
Made in Japan
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM 32 (December, 1963))
- Literature/Schematics (2)
- Transistor Radios (Page 142)
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
