- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165345
-
- alternative name: Wholesale Radio
Aus Lafayette Katalog 1939, Seite 20
Aus Lafayette Katalog 1939, Seite 20
Aus Lafayette Katalog 1939, Seite 20
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BB-48 - Lafayette Radio & TV Corp; New
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 25.12 x 40.5 x 17.5 inch / 638 x 1029 x 445 mm
- Notes

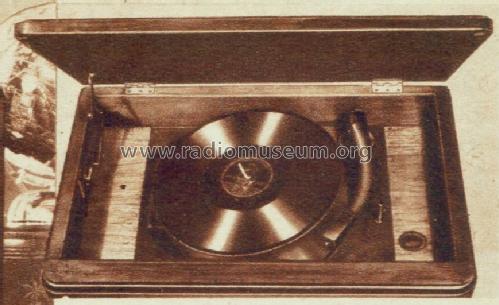

- Model BB-48 same as BB-35, but features a Garrad single speed (78 RPM) turntable with automatic stop and crystal pick-up.
Power output stage is Push-Pull configuration.
See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 100.00 $
- Mentioned in
- Lafayette Radio Catalog (catalog 1939, page 20)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
