- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164411
-
- alternative name: Wholesale Radio
Aus Lafayette catalog 1939, Seite 6
Aus Lafayette Catalog 1030, Seite 6
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-88 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14.75 x 8.875 x 7 inch / 375 x 225 x 178 mm
- Notes
- Duo-tone Walnut Mantel cabinet with magic eye included above the "slide-rule type dial. Tone control and wave trap are other features of this model.
See details and
summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 17.00 $
- Literature/Schematics (1)

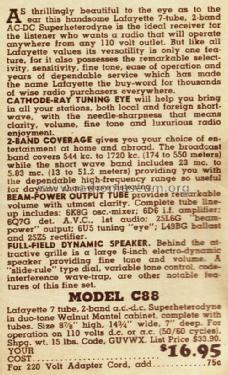

- Lafayette Radio Catalog (Catalog 1939, No.73, page 6)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
