• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1962 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 263807

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6X4 6E5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 or 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

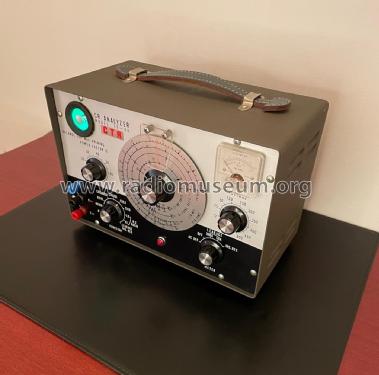

• Model: Capacitance - Resistance Analyzer TE-46 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 265 x 195 x 140 mm / 10.4 x 7.7 x 5.5 inch

• Notes

• Bridge for capacitance and resistance measurements, with a magic eye and built-in instrument for testing capacitors for breaks, short circuits, and leakage currents.
  Measuring ranges: 10pF-5nF, 1nF-0.5µF, 0.1µF-50µF, 50µF-2000µF; 2Ω-500Ω, 200Ω-50kΩ, 20kΩ-5MΩ, 5MΩ-200MΩ.

  "Preiswerte Brücke für Kapazitäts- und Widerstandsmessungen, mit magischem Auge und eingebautem Instrument zur Prüfung von Kondensatoren auf Unterbrechung, Kurzschlüsse, Leckströme usw."
  Messbereiche: 10pF-5nF, 1nF-0,5µF, 0,1µF-50µF, 50µF-2000µF; 2Ω-500Ω, 200Ω-50kΩ, 20kΩ-5MΩ, 5MΩ-200MΩ.

  Vertrieb durch Radio Fern.



• Net weight (2.2 lb = 1 kg)
• 12 lb 0 oz (12 lb) / 5.448 kg

• Price in first year of sale
• 245.00 DM

• Mentioned in
• Katalog RADIO FERN ELEKTRONIK GmbH, Essen

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• Funkschau (2/1965, S. 37, 38)
