Com-Phone 23
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1974
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 128844
-
- alternative name: Wholesale Radio

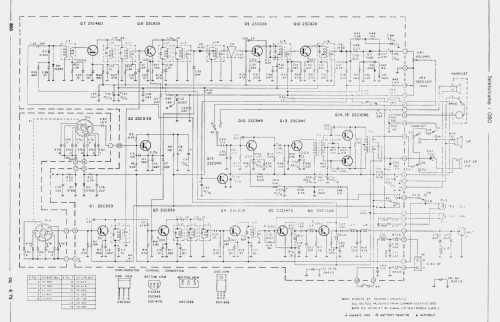

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12,6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Com-Phone 23 - Lafayette Radio & TV Corp; New
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 5 x 9.5 x 4 inch / 127 x 241 x 102 mm
- Notes
-

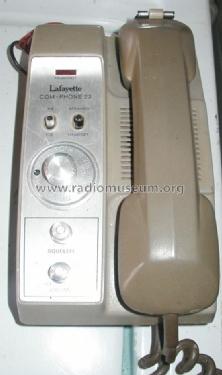

CB Transceiver, 23 channels AM; in the shape of a telephone. Output power is 5 W.
Receiver is double conversion, quartz controlled by synthesizer. It can operate with the internal loudspeaker or with the handset. Light indicates that device is transmitting. PA function with relative switch. Suitable both as a fixed station and for mobile installation in automobiles.
15 Transistors and 10 Diodes, listed one per type.
Schematic and semiconductors from referenced literature.
- Price in first year of sale
- 189.95 USD
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Lafayette Radio Catalog (1975, No. 750, page 258, "New... Com-Phone 23...Delivery Oct. 1, 1974")
- Literature/Schematics (1)
- Lafayette Radio Catalog (1974, No. 751, page 24, "Com-Phone Handset Style 23 Channel..A Bold, New Concept")
- Literature/Schematics (2)
- "CQ Elettronica" Italy, CD editor number 6 June 1975
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
