- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45953
-
- alternative name: Wholesale Radio

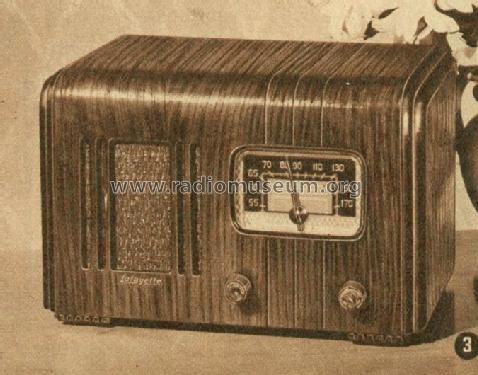

1940 Lafayette Catalog Nº 78
Lafayette Katalog No.80, Seite 3
Lafayette Katalog No.80, Seite 3
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: D-66 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.5 x 8 x 8 inch / 318 x 203 x 203 mm
- Notes
- Plus BM49-B ballast tube.
- Price in first year of sale
- 10.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Literature/Schematics (1)
- 1940 Lafayette Catalog Nº 78
