- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161204
-
- alternative name: Wholesale Radio
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 2 & 3 x 45 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: D-29 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.25 x 10.5 x 12 inch / 464 x 267 x 305 mm
- Notes
- 5-tube, 2-band, 2-volt battery superhet.
All batteries are contained within the cabinet. Three 45-volt "B's" and an Eveready "A" Pack fit neatly within the cabinet.
Two tuning bands are provided, covering American broadcasts from 174 to 560 meters, and the shortwave European broadcasts from 48,4 to 132 meters. The band switch is on the panel.
Wooden Cabinet, Shipping weight 22 lbs.
List Price $ 33,90 Lafayette Price $ 16.95.
- Price in first year of sale
- 17.00 $
- Mentioned in

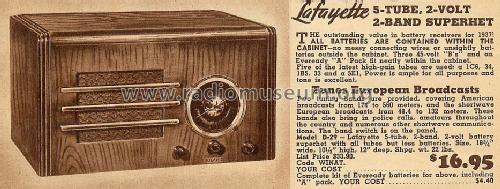

- Lafayette Radio Catalog (Spring and Summer Catalog No.68 - 1937, page 106)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
