- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165674
-
- alternative name: Wholesale Radio

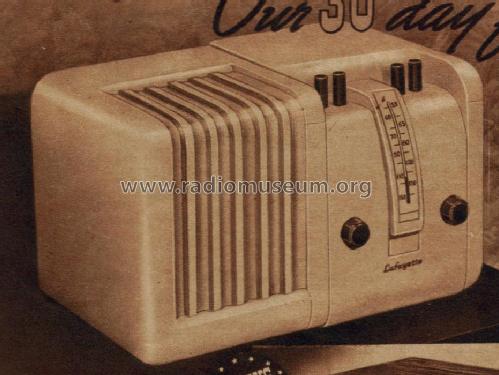

Aus Lafayette Katalog 1939, Seite22
Aus Lafayette Katalog 1939, Seite22
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: D-61 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.75 x 6.75 x 6.5 inch / 298 x 171 x 165 mm
- Notes
- Model similar to Model D-60, but Ivory Plastic case. Push button tuning for 4 preset stations. 6 Volt farm radio, vibrator for +B.
See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 18.00 $
- Mentioned in
- Lafayette Radio Catalog (catalog 1939, page 22)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
