EM, 8-tube Superhet Ch= E
Lafayette Radio & TV Corp; New York (NY)
- País
- Estados Unidos
- Fabricante / Marca
- Lafayette Radio & TV Corp; New York (NY)
- Año
- 1931
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 163893
-
- alternative name: Wholesale Radio
- Numero de valvulas
- 8
- Principio principal
- Superheterodino en general; 2 Etapas de AF; Screengrid 1926-1935
- Gama de ondas
- OM (onda media) solamente
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 110 Volt
- Altavoz
- Altavoz electrodinámico (bobina de campo)
- Material
- Madera
- de Radiomuseum.org
- Modelo: EM, 8-tube Superhet Ch= E - Lafayette Radio & TV Corp; New
- Forma
- Sobremesa tipo Capilla (upright, round top or pinted arch, not rounded edges only).
- Ancho, altura, profundidad
- 14.5 x 16.5 x 0 inch / 368 x 419 x 0 mm
- Anotaciones

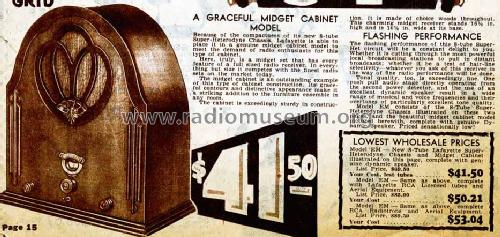

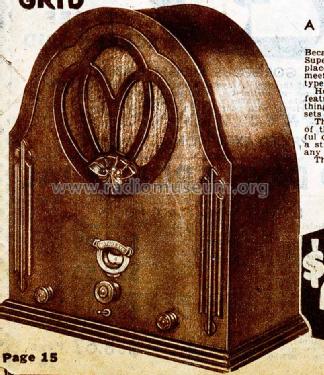

- The Spring-Summer catalog 1931 offers this chassis "E" with local-distance switch (in the center) and the console EC and the mantel (midget) EM with this chassis.
This Mantel Lafayette Super-Het EM has a list price of $ 85.00 and a Lafayette selling price of $ 50.21 or $ 41.50 without tubes or $ 53.04 with RCA tubes. See details and summaries in this catalog.
- Precio durante el primer año
- 50.00 $ !
- Documentación / Esquemas (1)
- Lafayette Radio Catalog (Lafayette Spring-Summer catalog 1931, pages 14-15.)
- Documentación / Esquemas (2)
- Cathedral & Tombstone Radios (page 160.)
- Autor
- Modelo creado por Ernst Erb. Ver en "Modificar Ficha" los participantes posteriores.
