- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160415
-
- alternative name: Wholesale Radio
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- AC/DC-set / 115 also possible for 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

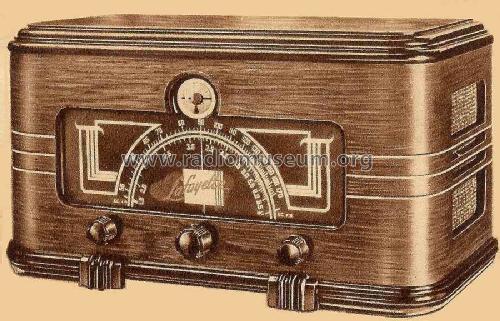

- Model: EB-15 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 14.875 x 8 x 7.5 inch / 378 x 203 x 191 mm
- Notes
- The model Lafayette EB-15 tunes from 46 - 100 meters short wave and from 175 - 555 meters broadcast band. We don't count the ballast tube 140R8. Lafyette is writing "... and assure the listener of studio-like reproduction."
List price for model EB-15 is $ 35.90 and Lafayette price is $ 17.95. Addl. $ 1.00 for 220-volt AC operation. See details for the models of this catalog or summaries.
- Price in first year of sale
- 18.00 $
- Literature/Schematics (1)
- Lafayette Radio Catalog (Lafayette Spring and Summer catalog no. 68 for 1937, page 2.)
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (page 107.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
