• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193849

• • alternative name: Wholesale Radio

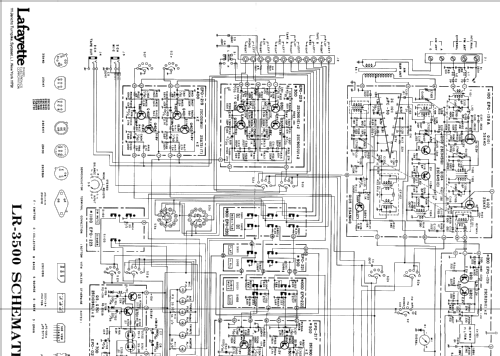

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 47 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM-AM Receiver LR-3500 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19.63 x 5.25 x 14.25 inch / 499 x 133 x 362 mm

• Notes
• Built-in Circuit for 4-Dimensional Stereo.
  47W per channel, minimum RMS, at 8 Ohm from 20Hz to 20kHz, with no more than 0.5% Total Harmonic Distortion.

• Net weight (2.2 lb = 1 kg)
• 25 lb (25 lb 0 oz) / 11.350 kg

• Price in first year of sale
• 399.00 $

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
