• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1976 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132907

• • alternative name: Wholesale Radio

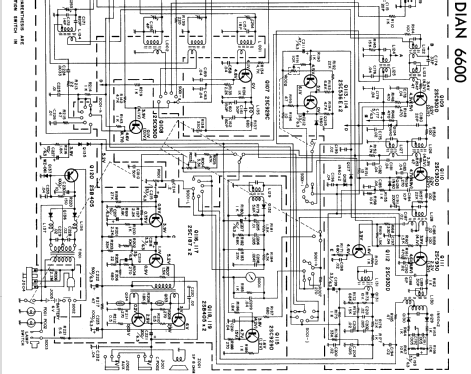

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 105; 120 / 4 ×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

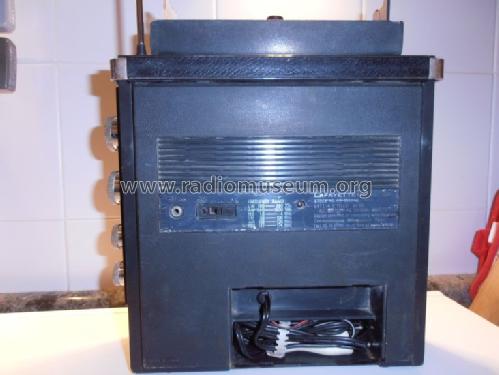

• Model: Guardian 6600 - Lafayette Radio & TV Corp; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 266 x 285 x 85 mm / 10.5 x 11.2 x 3.3 inch

• Notes
• Guardian 6600.
  Freqvency range:
  LW 180-380 kHz
  AM 540-1600 kHz
  MB 1,6-4 MHz FM 88-108 MHz AIR 108-136 MHz PSB 147-174 MHz

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
