• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174596

• • alternative name: Wholesale Radio

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

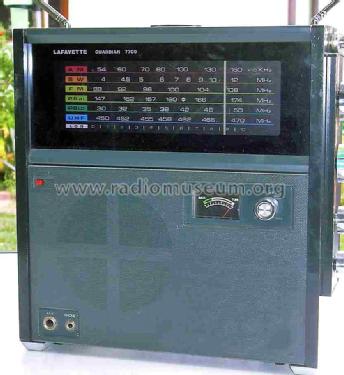

• Model: Guardian 7700 - Lafayette Radio & TV Corp; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 260 x 90 mm / 9.8 x 10.2 x 3.5 inch

• Notes
• DX-Spezialempfänger mit folgenden Wellenbereichen: UHF 450..470 MHz, VHF 144..174 MHz, UKW1 84..105 MHz, UKW2 30..50 MHz, MW 530..1600 kHz, KW 3,7..12 MHz. Total 38 Halbleiter (16 Dioden). Keramik-Filter; Regelbare Rauschsperre; eingebautes S-Meter; Skalenbeleuchtung; Tonblende; 3 Antennen; Anschlüsse für Aussenantenne, Ohr- und Kopfhörer. Preis in Österreich ATS 3.500.-

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
