• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1969 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 102340

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SK19 2SC605 2SC183 2SC712 2SC910 2SC710 1S34 1S1210

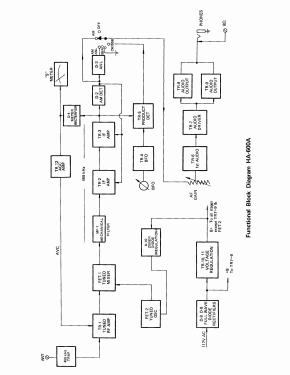

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 110-127 / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

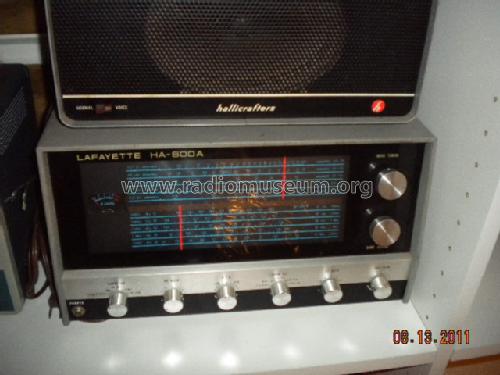

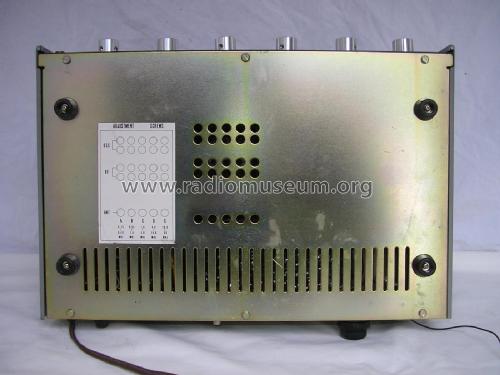

• Model: HA-600A - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 376 x 210 x 270 mm / 14.8 x 8.3 x 10.6 inch

• Notes

• Lafayette Receiver HA-600A.

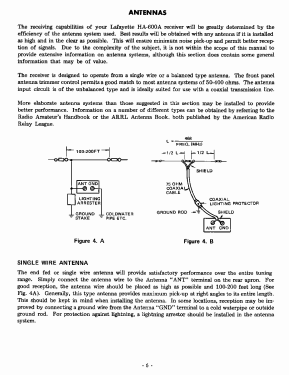

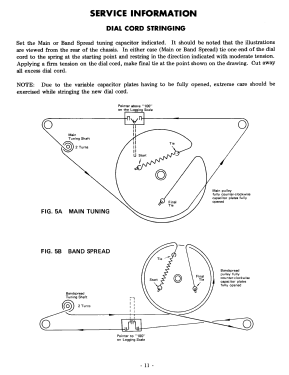

  Coverage 150 kHz to 30 MHz in 5 ranges; Modes: AM, CW (BFO); band spreading for 80 m to 10 m HAM bands; RF-gain, antenna trim., TX/RX-switch/remote connector (octal socket); special DC input connector 12 V.

  Some exported models with a internal 220/110-V-transformer.

  Output for headphones and for loudspeaker 8 or 500 Ω.

  15 Transistors, 5 Diodes and 2 Rectifier Diodes, listed one per type and not all.
