• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 45978

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1N5GT 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110;1.5/45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

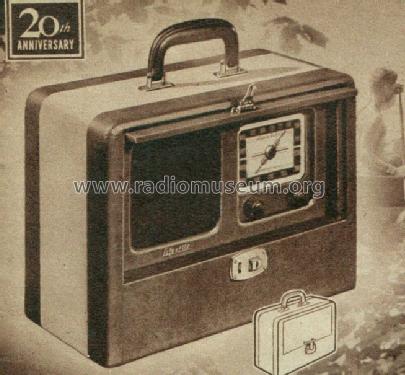

• Model: JS-130 [BL=blue & white; BR=solid brown] - Lafayette Radio & TV Corp; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.75 x 9.25 x 6 inch / 324 x 235 x 152 mm

• Notes
• Power cord includes 560 Ohms resistance for adaptation to 110V AC/DC. Leatherette cabinet covering available in 3 different tones: No additional letters to Model Nr.: Brown & White; Letters BL: Blue and White; Letters BR: Solid Brown..

  See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41.

• Price in first year of sale
• 19.00 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Lafayette Radio Catalog (catalog No.82, page 8)
