FM Tuner LT-80
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136141
-
- alternative name: Wholesale Radio

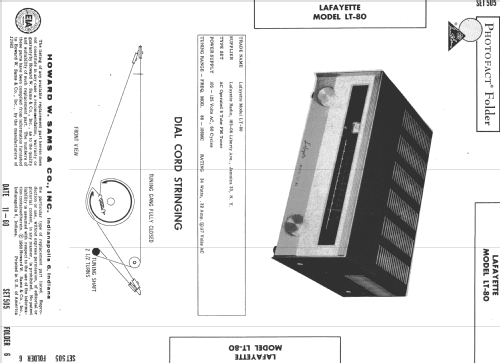

Sams photofact Set 505 folder 6 date 11-60.
Lafayette Catalog No.600, 1960, page 9.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM Tuner LT-80 - Lafayette Radio & TV Corp; New
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 11.375 x 4.125 x 8 inch / 289 x 105 x 203 mm
- Notes
-
AC operated FM mono tuner.
Made in Japan
- Price in first year of sale
- 49.50 USD
- Mentioned in
- Lafayette Radio Catalog (Catalog No. 600, 1960, page 9)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 505 folder 6 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
