P15734 3.5 Watt portable Ampl.

Lafayette Radio & TV Corp; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1933/1934
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 160538
    • alternative name: Wholesale Radio

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: P15734 3.5 Watt portable Ampl. - Lafayette Radio & TV Corp; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 15 x 15 x 10 inch / 381 x 381 x 254 mm
  • Notes

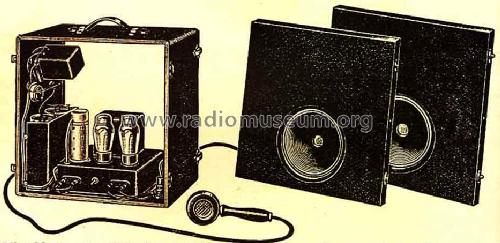

  • The Lafayette P15765 is a 3.5 Watt portable Public Address System including a Lafayette including a single button Hand Microphone and a pair of matched speakers in carrying case. The system is described in the picture. As P15734 it was delivered with a double button Hand Mike and as P15736 including a Floor Stand.

    For the model P15765 the list price is $ 85.00 and Lafayette price is $ 37.50 without tubes. P15734 costs $ 42.50 and P15736 $ 45.50. P15737 is only a kit of matched tubes for the amplifier for $ 2.25. See details for the models of this catalog.
  • Price in first year of sale
  • 43.00 $ +
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
