- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 184728
-
- alternative name: Wholesale Radio

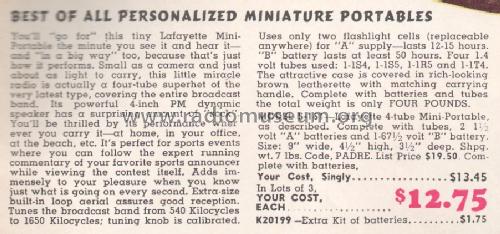

Lafayette Katalog No.82, Seite 193
Lafayette Katalog No.82, Seite 193
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 1,5 & 67,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: S-161 - Lafayette Radio & TV Corp; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9 x 4.5 x 3.5 inch / 229 x 114 x 89 mm
- Notes

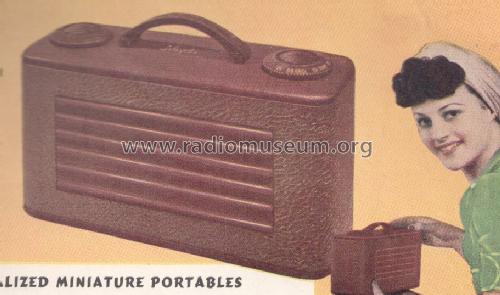

- The case of this Lafayette model is covered in rich looking brown leatherette.
See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41.
- Price in first year of sale
- 14.00 $
- Mentioned in
- Lafayette Radio Catalog (catalog No.82, page 193)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
