Stereo Amplifier LA-224
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1964 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 242670
-
- alternative name: Wholesale Radio

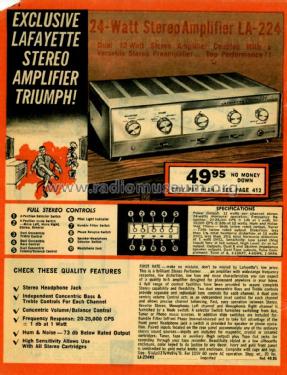

1964 Lafayette catalog 640, page 8
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 24 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Amplifier LA-224 - Lafayette Radio & TV Corp; New
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 13.875 x 5.125 x 8.5 inch / 352 x 130 x 216 mm
- Notes
-
Integrated amplifier; output 8 Ω / 16 Ω.
- Price in first year of sale
- 49.95 USD
- Mentioned in
- Lafayette Radio Catalog (Catalog 640, 1964, page 8)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
