Trutest FS-224
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136893
-
- alternative name: Wholesale Radio
Sams photofact Set 578 folder 13 date 5-62.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Trutest FS-224 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, with any shape - general.
- Notes
- AC - DC operated AM tube receiver.
- Literature/Schematics (1)

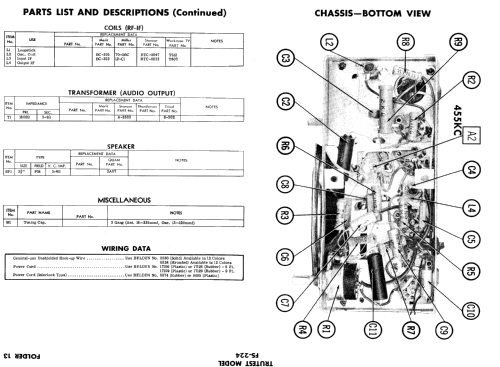

- Photofact Folder, Howard W. SAMS (Set 578 folder 13 date 5-62)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
