• Country
• Spain

• Manufacturer / Brand
• Radio Marchán; Lak; Madrid

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176430

• Number of Tubes
• 4

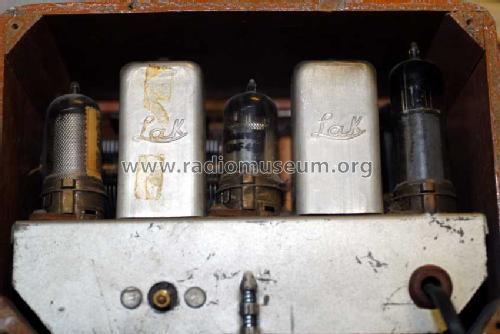

• Valves / Tubes
• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Wooden case

• from Radiomuseum.org

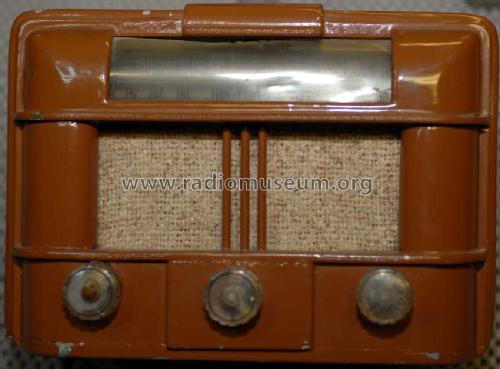

• Model: Lak Baby [4 tubes] - Radio Marchán; Lak; Madrid

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 180 x 130 x 140 mm / 7.1 x 5.1 x 5.5 inch

• Notes

• Lak Baby has medium and short wave (6...17 MHz).

  See also Radio Marchán Lak Baby with 5 tubes.

• Price in first year of sale
• 1,094.60 ESP

• Mentioned in
• Radio españolas, Joan Julià Enrich, 1999

• Author
• Model page created by Francisco Gallego. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 11 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radio Marchán; Lak; Madrid
