E846

Lambda - Olivieri e Glisenti; Torino

Data
Forum
Pictures
Collections

  • Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 106777

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 475 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-270 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: E846 - Lambda - Olivieri e Glisenti;
  • Notes

  • Strumento indicatore di sintonia. I 2 altoparlanti sono entrambi elettrodinamici.
    Le 2 WE38 sono in parallelo.

    Controllo di tono.

  • Literature/Schematics (2)

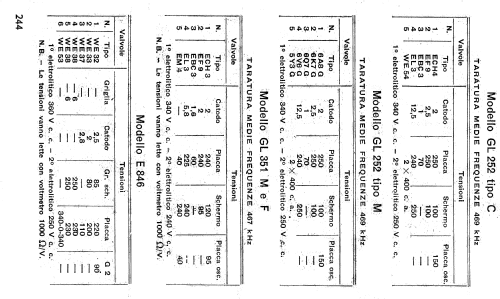

  • -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
