• Country
• Italy

• Manufacturer / Brand
• Lambda - Olivieri e Glisenti; Torino

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156626

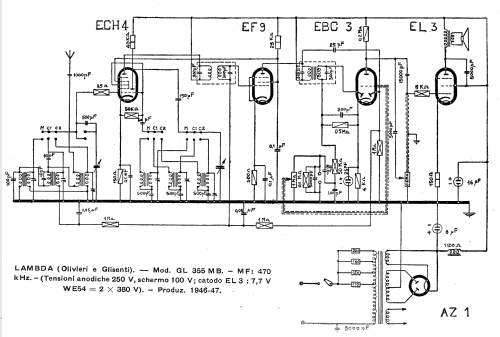

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL3 AZ1 or WE54

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 160; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: GL 355 MB - Lambda - Olivieri e Glisenti;

• Literature/Schematics (1)
• Schemario degli Apparecchi Radio IV Edizione D.E. Ravalico

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
