• Country
• Italy

• Manufacturer / Brand
• Lambda - Olivieri e Glisenti; Torino

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30584

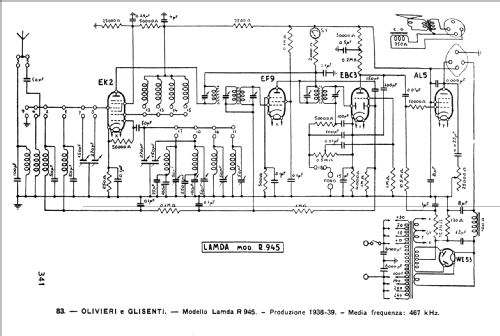

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF9 EBC3 AL5 WE53

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: R945M Ch=R945 - Lambda - Olivieri e Glisenti;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Strumento indicatore di sintonia.
  Controllo di tono. Ingresso per giradischi.
  Cambio tensioni: 100-140-200-240 +10 +20 +30 V.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (Il Radio Libro, (Ravalico) 6a edizione 1942)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
