Zeitschalter für Wechselstrom BBs
Landis & Gyr, Theiler, LG; Zug
- Country
- Switzerland
- Manufacturer / Brand
- Landis & Gyr, Theiler, LG; Zug
- Year
- 1961
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 269690
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 / 380 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Zeitschalter für Wechselstrom BBs - Landis & Gyr, Theiler, LG; Zug
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 105 x 190 x 115 mm / 4.1 x 7.5 x 4.5 inch
- Notes
-

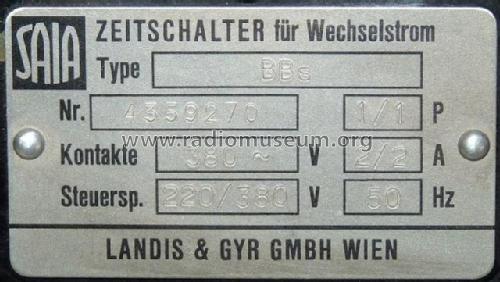

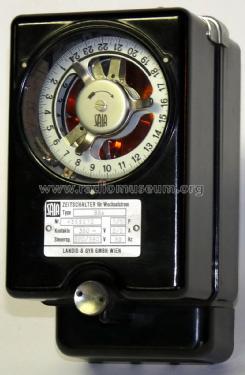

Einsatz im Sender Aldrans in Tirol zur zeitgenauen Sender An- und Abschaltung. Damals wurde der Sender in den Nachtstunden aus Kostengründen deaktiviert. Wandmontage; Steuerspannung 220 / 380 Volt AC; Kontakte ausgelegt für 380 V / 2,2A / 50 Hz AC;
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
