• Country
• United States of America (USA)

• Manufacturer / Brand
• Lang Radio Corp.; Brooklyn, NY

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46045

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6C6 43 12Z3

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

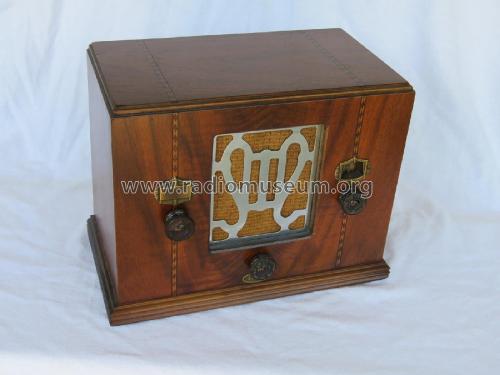

• Model: 502-US - Lang Radio Corp.; Brooklyn, NY

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Other Models

• Here you find 39 models, 6 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lang Radio Corp.; Brooklyn, NY
