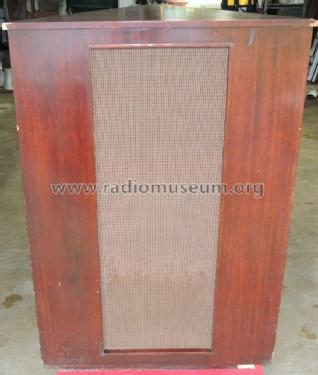

Jim Lansing corner speaker D1004
Lansing, James B. (JBL), Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lansing, James B. (JBL), Los Angeles, CA
- Year
- 1955 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 354666
-
- Brand: JBL
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers / Ø 15 inch = 38.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jim Lansing corner speaker D1004 - Lansing, James B. JBL, Los
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 34.75 x 50.75 x 17.875 inch / 883 x 1289 x 454 mm
- Notes
-

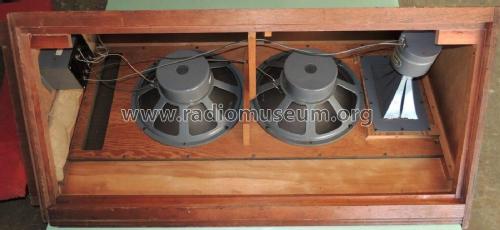

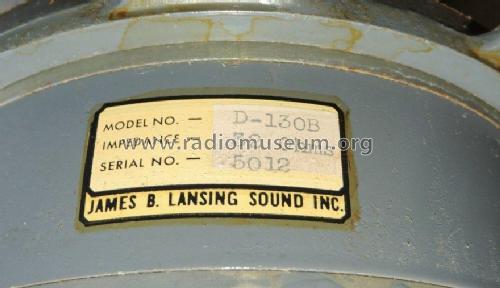

Components: multi-cell horn model JBL 175, 2 woofers model D-130B, crossover N-1200; 16 Ohms.
- Net weight (2.2 lb = 1 kg)
- 122 lb (122 lb 0 oz) / 55.388 kg
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
