Olympus C50 Ch= LE15A 375 075
Lansing, James B. (JBL), Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lansing, James B. (JBL), Los Angeles, CA
- Year
- 1965 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 356343
-
- Brand: JBL
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers / Ø 15 inch = 38.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Olympus C50 Ch= LE15A 375 075 - Lansing, James B. JBL, Los
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 40.125 x 26.5 x 20 inch / 1019 x 673 x 508 mm
- Notes
-

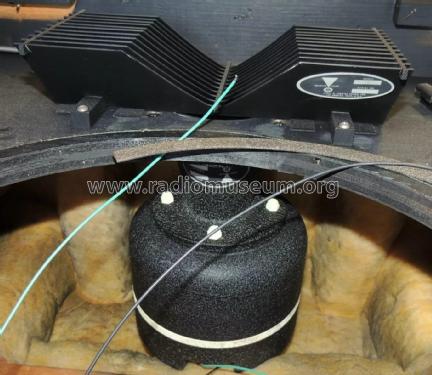

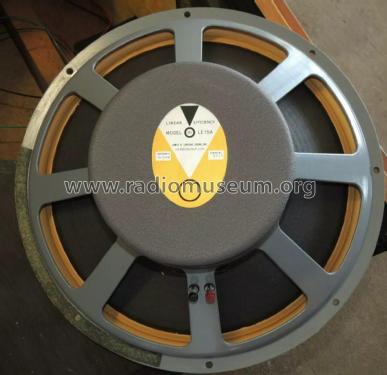

16Ω speaker with S8 system: woofer LE15A; horn driver 375; tweeter 075; crossovers LX5 and N7000.
- Net weight (2.2 lb = 1 kg)
- 148.5 lb (148 lb 8 oz) / 67.419 kg
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
